Resin Injection in Wollongong

Resin injection is offered to lift or support a slab or footing by injecting expanding resin into the ground beneath it. The University of Newcastle calls it a common underpinning solution for houses, buildings and paving slabs; the published research we could read is thin.

Call (02) 4207 9821

Request a free quote

What resin injection in Wollongong actually involves

Buzzi, Fityus and Sloan (Canadian Geotechnical Journal, 2010) say expansive polyurethane resin can be injected in stages under a structure to reach a desired level, forming a resin and clay composite. Although the resin cannot stop the soil wetting again, they say the long-term risk of over-lifting is limited. We read only the abstract.

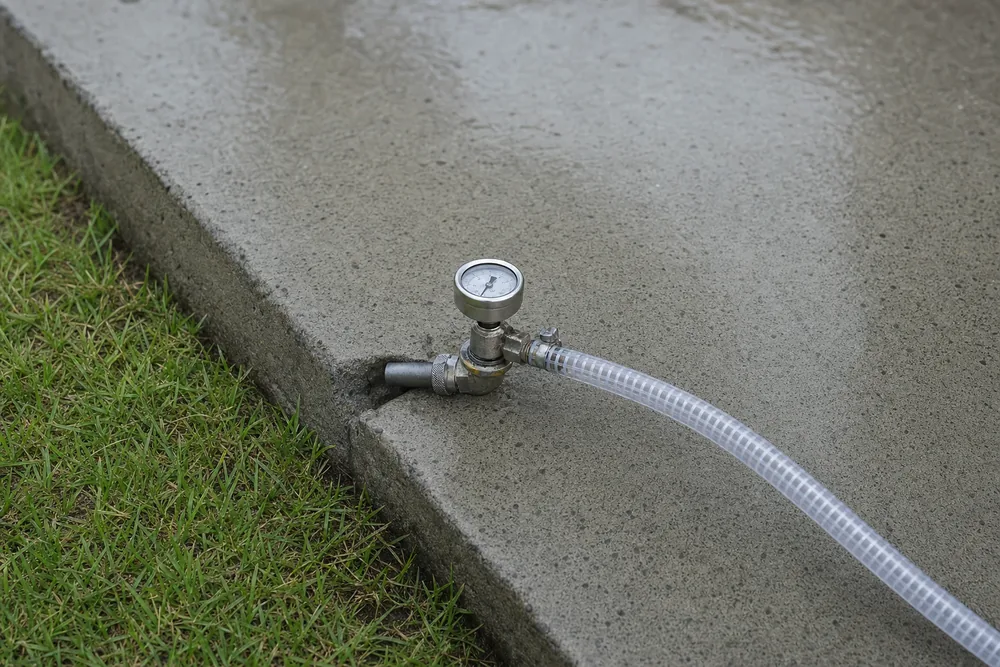

A steel fitting with a pressure gauge and a clear hose at the edge of a concrete slab beside grass — resin injection, Wollongong. Illustrative example.

What the same sources warn about

The University of Newcastle's page adds that cracks left by shrinking soil are filled with resin, so wetting later can cause extra swelling that may over-lift the foundation, though its laboratory tests on large samples showed injected specimens swelling no more. An open-access review by non-Australian authors lists relatively high material cost, rare documentation compared with other techniques, susceptibility to ultraviolet light and microbial degradation, and an injection depth of up to ten metres that limits the method to shallow foundations. None of these sources sets resin against underpinning, and neither does this page.

Ask how the provider's method deals with wet ground. For the Fairy Meadow unit, which the soil map returns at Fairy Meadow and part of Dapto, the state's report lists high seasonal watertables and low wet bearing strength as limitations and says nothing about resin. Where a job lowers the water table on land that the local plan's acid sulfate map puts in a class, the plan's consent rule for such works can apply, and whether a job does that is a fact about the job.

Underpinning costs and rules check

Resin Injection in Wollongong — common questions

Is resin injection cheaper than underpinning?

We found no independent source comparing them, and the University of Newcastle itself calls resin injection an underpinning solution.

Does resin injection need a licence?

NSW's licence rule attaches to underpinning or piering work above A$5,000, and we have not established which category a resin job is done under, so ask the provider.

How long does resin injection last?

The sources we read give no figure; the 2010 paper says only that the long-term risk of over-lifting is limited.
